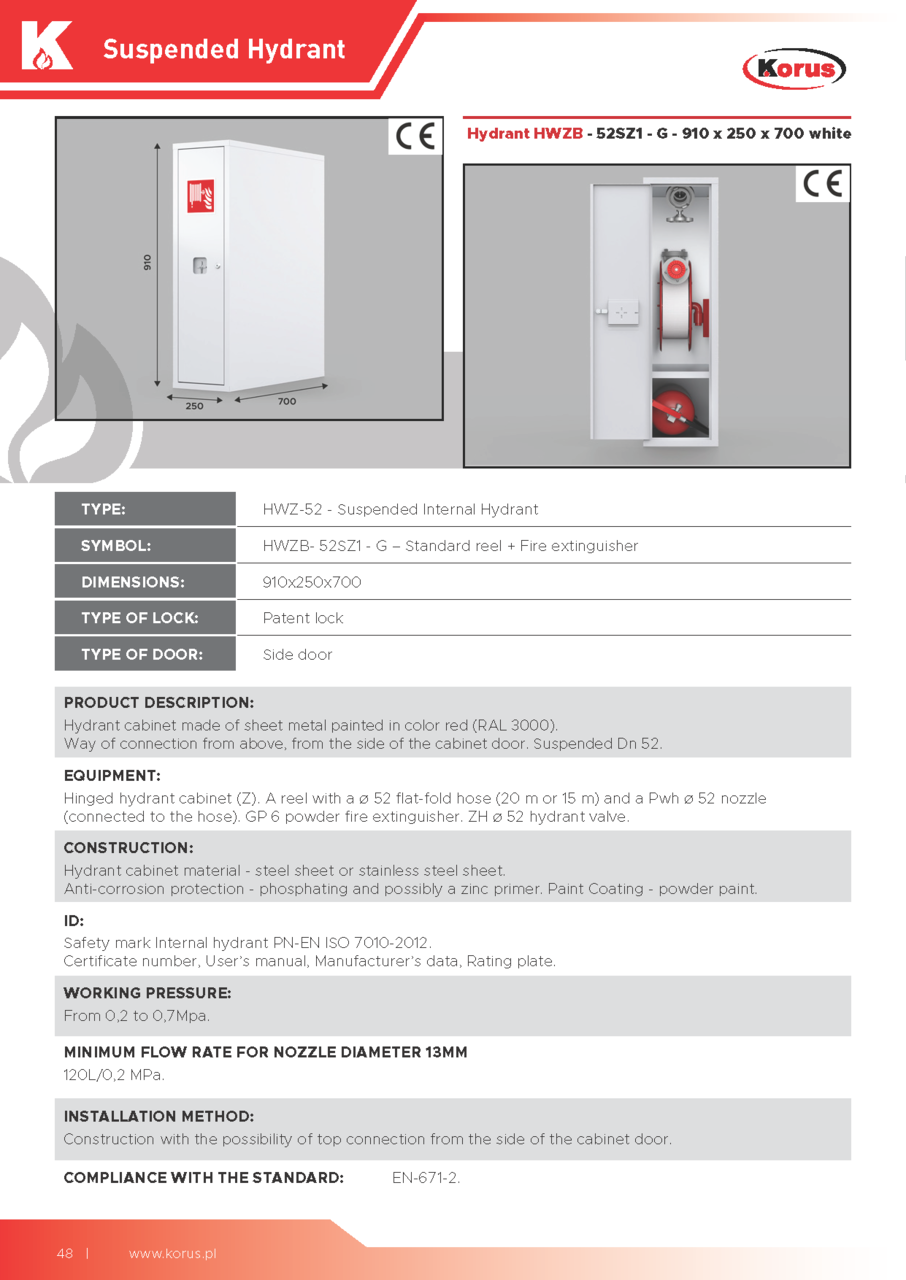

Suspended HydrantHWZB-52SZ1-G 910 x 250 x 700
white
PRODUCT DESCRIPTION:
Hydrant cabinet made of sheet metal painted in color red (RAL 3000).
Way of connection from above, from the side of the cabinet door. Suspended Dn 52.
Product specifications
EQUIPMENT:
Hinged hydrant cabinet (Z). A reel with a ø 52 flat-fold hose (20 m or 15 m) and a Pwh ø 52 nozzle
(connected to the hose). GP 6 powder fire extinguisher. ZH ø 52 hydrant valve.
CONSTRUCTION:
Hydrant cabinet material - steel sheet or stainless steel sheet.
Anti-corrosion protection - phosphating and possibly a zinc primer. Paint Coating - powder paint.
ID:
Safety mark Internal hydrant PN-EN ISO 7010-2012.
Certificate number, User’s manual, Manufacturer’s data, Rating plate.
WORKING PRESSURE:
From 0,2 to 0,7Mpa.
MINIMUM FLOW RATE FOR NOZZLE DIAMETER 13MM
120L/0,2 MPa.
INSTALLATION METHOD:
Construction with the possibility of top connection from the side of the cabinet door.
COMPLIANCE WITH THE STANDARD: EN-671-2.
| Technical Parameters | ||||
| Type | Symbol | Dimensions | Type of lock | Type of door |
| HWZ-52 - Suspended Internal Hydrant | HWZB-52SZ1-G Standard reel + Fire extinguisher | 910x250x700 | Patent lock | Side door |
