Product catalog

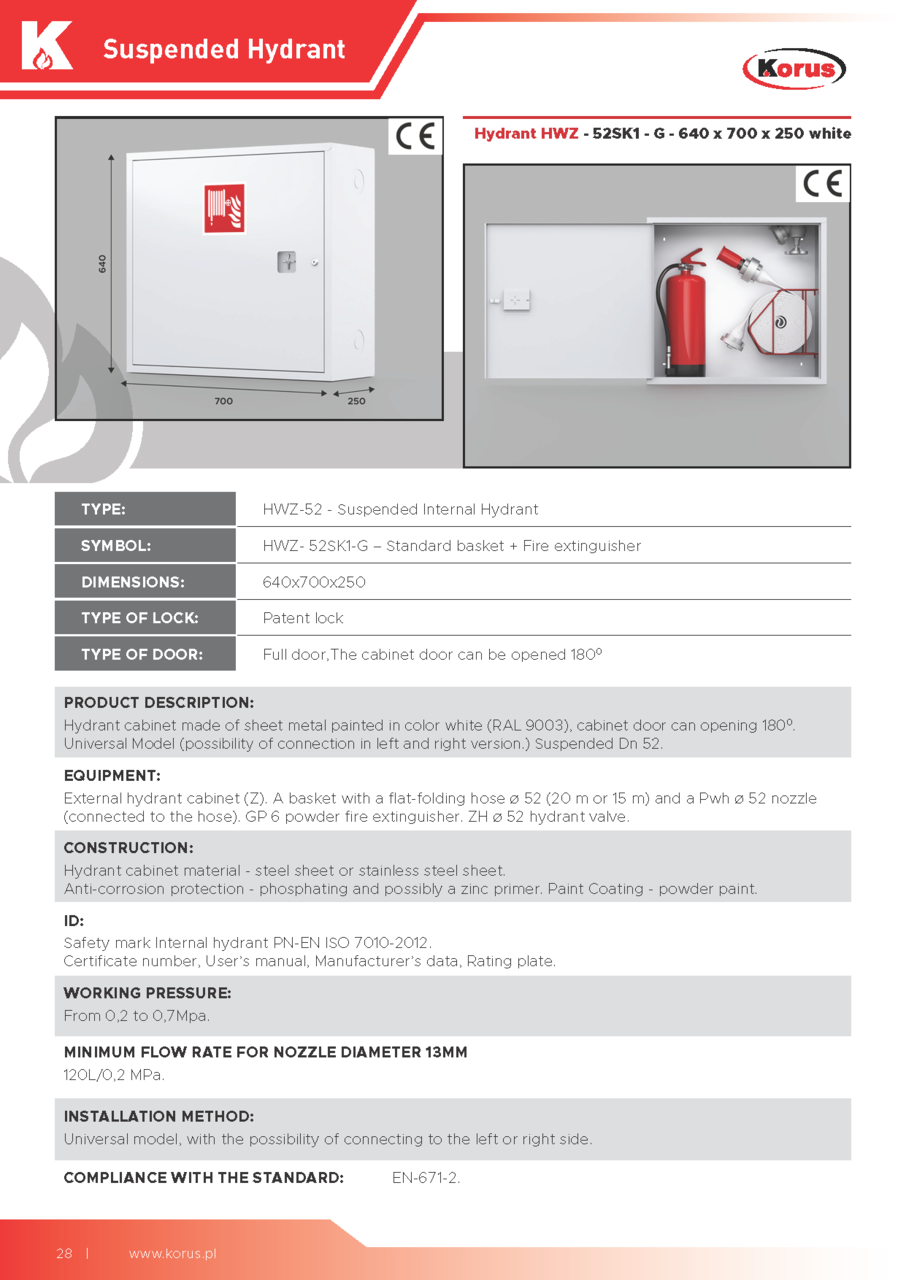

Suspended HydrantHWZ-52SK1-G 640 x 700 x 250
white
PRODUCT DESCRIPTION:
Hydrant cabinet made of sheet metal painted in color white (RAL 9003), cabinet door can opening 1800. Universal Model (possibility of connection in left and right version.) Suspended Dn 52.
Product specifications
EQUIPMENT:
External hydrant cabinet (Z). A basket with a flat-folding hose ø 52 (20 m or 15 m) and a Pwh ø 52 nozzle (connected to the hose). GP 6 powder fire extinguisher. ZH ø 52 hydrant valve.
CONSTRUCTION:
Hydrant cabinet material - steel sheet or stainless steel sheet.
Anti-corrosion protection - phosphating and possibly a zinc primer. Paint Coating - powder paint.
ID:
Safety mark Internal hydrant PN-EN ISO 7010-2012.
Certificate number, User’s manual, Manufacturer’s data, Rating plate.
WORKING PRESSURE:
From 0,2 to 0,7Mpa.
MINIMUM FLOW RATE FOR NOZZLE DIAMETER 13MM
120L/0,2 MPa.
INSTALLATION METHOD:
Universal model, with the possibility of connecting to the left or right side.
COMPLIANCE WITH THE STANDARD: EN-671-2.
| Technical Parameters | ||||
| Type | Symbol | Dimensions | Type of lock | Type of door |
| HWZ-52 - Suspended Internal Hydrant | HWZ-52SK1-G Standard basket + Fire extinguisher | 640x700x250 | Patent lock | Full door, The cabinet door can be opened 180° |
