Product catalog

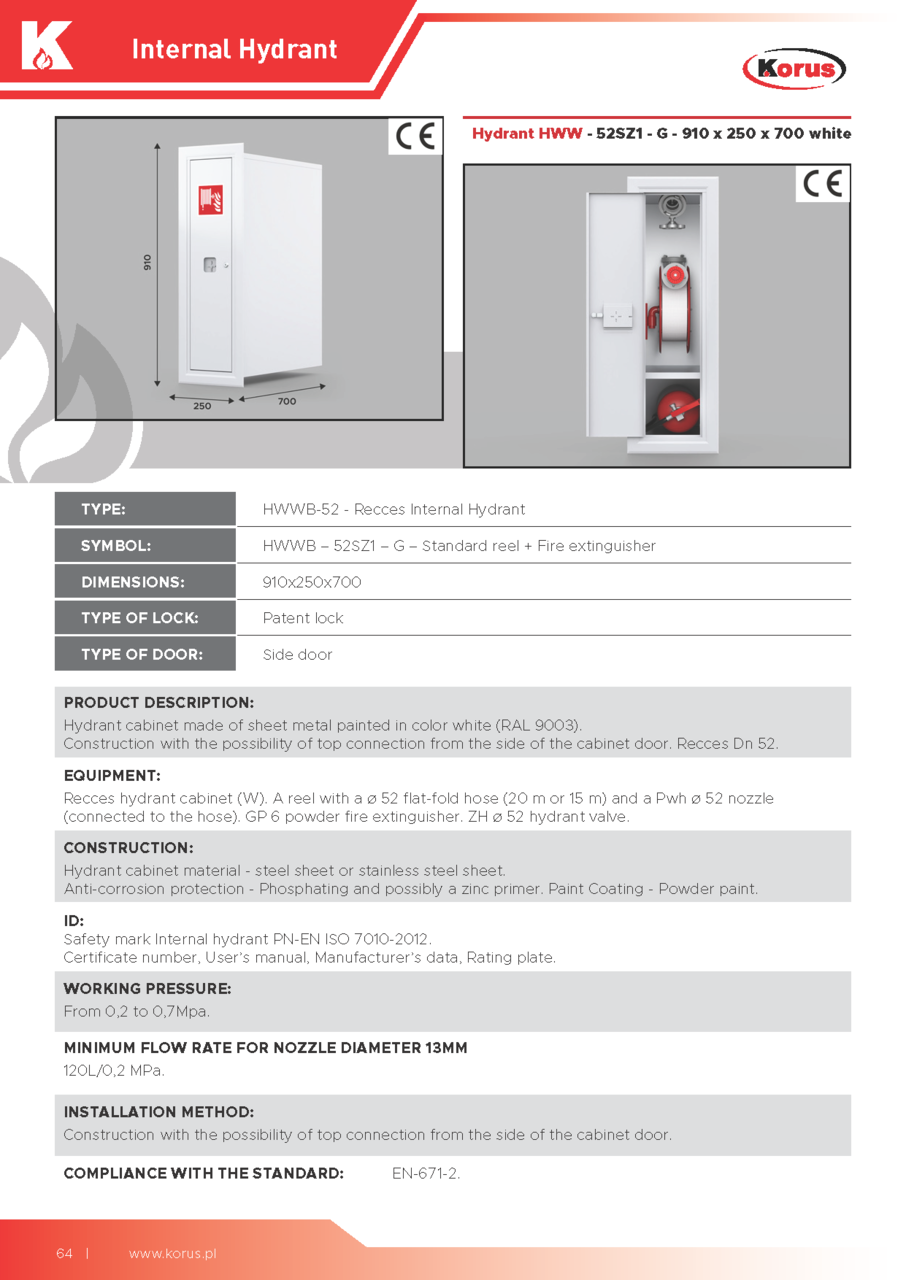

Recess Hydrant WhiteHWW-52SZ1-G 910 x 250 x 700
white
PRODUCT DESCRIPTION:
Hydrant cabinet made of sheet metal painted in color white (RAL 9003).
Construction with the possibility of top connection from the side of the cabinet door. Recces Dn 52.
Product specifications
EQUIPMENT:
Recces hydrant cabinet (W). A reel with a ø 52 flat-fold hose (20 m or 15 m) and a Pwh ø 52 nozzle
(connected to the hose). GP 6 powder fire extinguisher. ZH ø 52 hydrant valve.
CONSTRUCTION:
Hydrant cabinet material - steel sheet or stainless steel sheet.
Anti-corrosion protection - Phosphating and possibly a zinc primer. Paint Coating - Powder paint.
ID:
Safety mark Internal hydrant PN-EN ISO 7010-2012.
Certificate number, User’s manual, Manufacturer’s data, Rating plate.
WORKING PRESSURE:
From 0,2 to 0,7Mpa.
MINIMUM FLOW RATE FOR NOZZLE DIAMETER 13MM
120L/0,2 MPa.
INSTALLATION METHOD:
Construction with the possibility of top connection from the side of the cabinet door.
COMPLIANCE WITH THE STANDARD: EN-671-2.
| Technical Parameters | ||||
| Type | Symbol | Dimensions | Type of lock | Type of door |
| HWW-52 - Recess Internal Hydrant | HWW-52SZ1-G Standard reel + Fire extinguisher | 910x250x700 | Patent lock | Side door |
