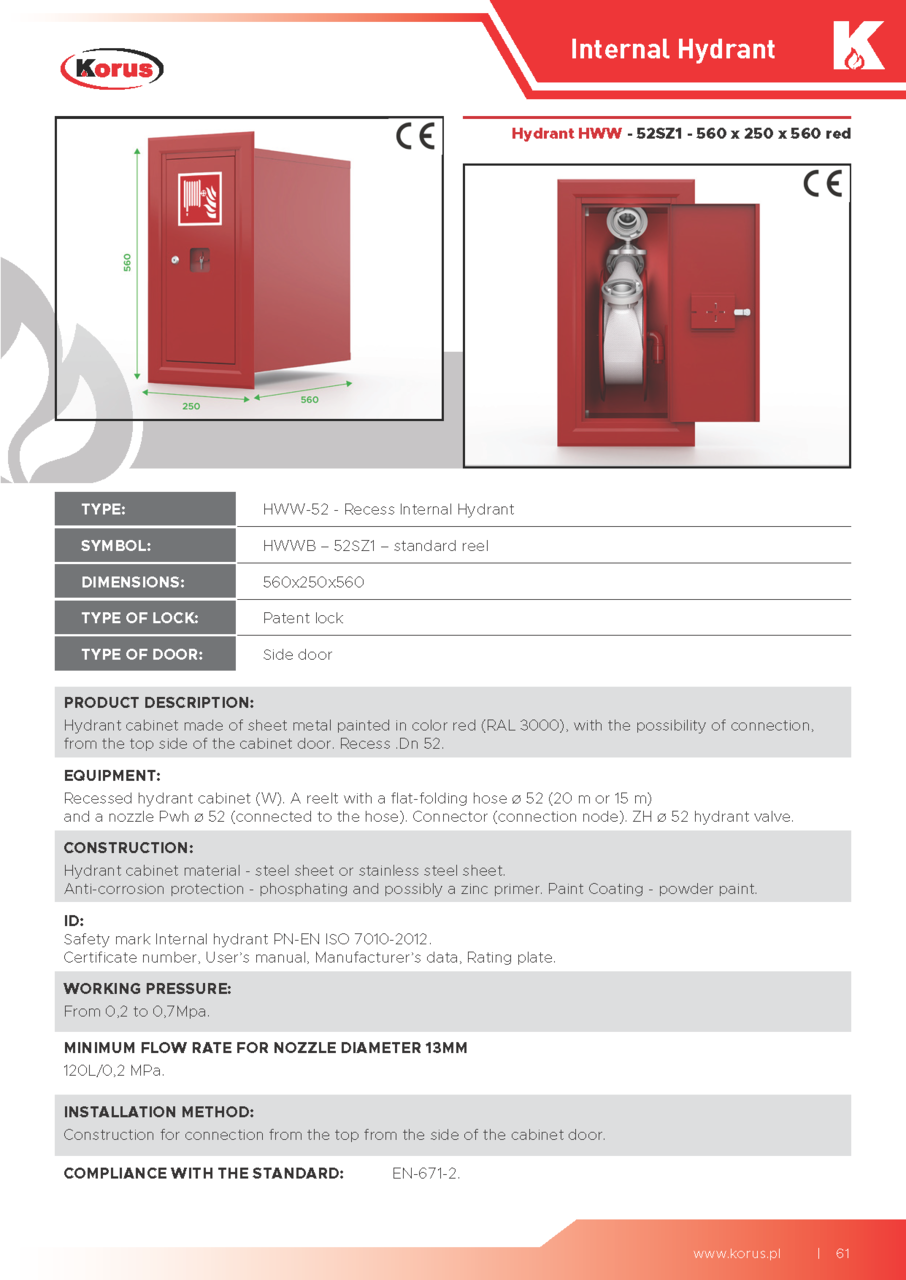

Recess HydrantHWW-52SZ1 560 x 250 x 560
red
PRODUCT DESCRIPTION:
Hydrant cabinet made of sheet metal painted in color red (RAL 3000), with the possibility of connection,
from the top side of the cabinet door. Recess .Dn 52.
Product specifications
EQUIPMENT:
Recessed hydrant cabinet (W). A reelt with a flat-folding hose ø 52 (20 m or 15 m)
and a nozzle Pwh ø 52 (connected to the hose). Connector (connection node). ZH ø 52 hydrant valve.
CONSTRUCTION:
Hydrant cabinet material - steel sheet or stainless steel sheet.
Anti-corrosion protection - phosphating and possibly a zinc primer. Paint Coating - powder paint.
ID:
Safety mark Internal hydrant PN-EN ISO 7010-2012.
Certificate number, User’s manual, Manufacturer’s data, Rating plate.
WORKING PRESSURE:
From 0,2 to 0,7Mpa.
MINIMUM FLOW RATE FOR NOZZLE DIAMETER 13MM
120L/0,2 MPa.
INSTALLATION METHOD:
Construction for connection from the top from the side of the cabinet door.
COMPLIANCE WITH THE STANDARD: EN-671-2.
| Technical Parameters | ||||
| Type | Symbol | Dimensions | Type of lock | Type of door |
| HWW-52 - Recess Internal Hydrant | HWW-52SZ1 Standard reel | 560x250x560 | Patent lock | Side door |
